نظرة عامة:
ARUBA ION 1430 8G 64W sw

الوصف والمميزات:

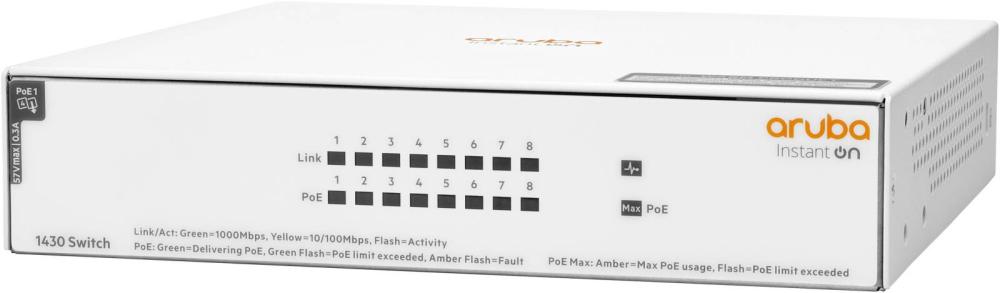

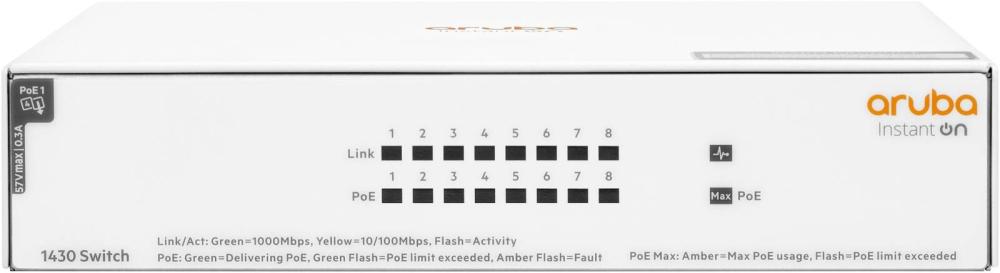

Instant On 1430
The HPE Networking Instant On R8R46A features 8 x RJ-45 10/100/1000 Class 4 PoE ports and has Layer 2 switching capabilities, with a switching capacity of up to 16 Gbps helping you to connect and share common resources like printers and access points, without any complicated network configuration.
Power your Class 4 PoE devices such as access points, surveillance cameras and VoIP phones with the R8R46A's power budget of 64W.
Specifications
I/O Ports and Slots

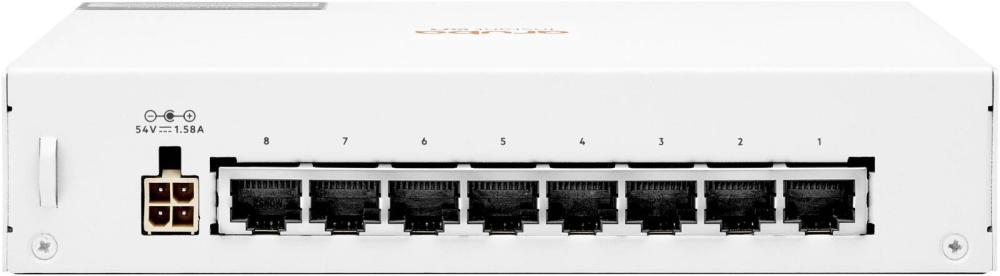

8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports
Dimensions (D x W x H)
5.91 x 6.96 x 1.45 in (15 x 17.7 x 3.7 cm)
Weight
1.70 lb (0.77 kg)
Processor & Memory
128Kb EEPROM; 2.0 Mb Packet Buffer
100 Mb Latency
< 2.7 μSec<br>1000 Mb Latency<br>< 1.80 μSec<br>Throughput (Mpps)<br>11.90 Mpps<br>Capacity<br>16 Gbps<br>MAC Address Table Size<br>8192 entries<br>MTBF (years)<br>131.1<br>Operating Temp.<br>32°F to 104°F (0°C to 40°C)<br>Humidity<br>15%-95% non-condensing<br>Non-Operating Temp.<br>-40°F to 158°F (-40°C to 70°C)<br>Acoustics<br>Fanless<br>Frequency<br>50Hz/60Hz<br>AC Voltage<br>100-240VAC<br>Current<br>2A (54VDC - 1.58A)<br>Max Power Rating<br>90W<br>Idle Power<br>4.1W<br>PoE Power<br>64W Class 4 PoE<br>Power Supply<br>External Power Adapter<br>Safety<br>EN/IEC 60950-1; EN/IEC 62368-1; UL 62368-1; CAN/CSA C22.2 No. 62368-1; EN/IEC 60825-1:2018<br>Emissions<br>EN 55032; FCC CFR 47 Part 15; ICES-003; VCCI-32; CNS 13438; KS C 9832; AS/NZS CISPR 32</p>
